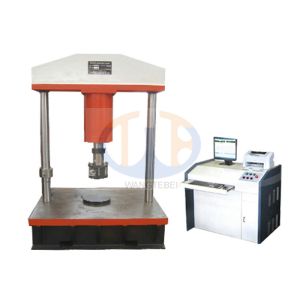

1. Product name:computerized manhole cover compression testing
machine
2. Introduction of testing machine
The manhole cover compression testing machine can be used to test
the compression properties of cast iron manhole cover, composite
material manhole cover, and steel reinforced concrete.
The manhole cover compression testing machine adopts computerizing,
high precision electro-hydraulic servo valve to drive precise
hydraulic cylinder and then realize the auto control to the test
force, displacement, and deformation, etc.
3. Test standard
BS EN 124 Gully tops and manhole tops for vehicular and pedestrian
areas-Design requirements, type testing, marking, quality control
4. Main technical parameters of testing machine
| 1 | Max. test force | 600kN | 1000kN | 1500kN |
| 2 | Measuring range | 2%-100%FS | 2%-100%FS | 2%-100%FS |
| 3 | Precision | 1% | 1% | 1% |
| 4 | Compression space | 0-350mm | 0-350mm | 0-350mm |
| 5 | Size of working table | 1200X1400mm | 1200X1400mm | 1400X1500mm |
| 6 | Diameter of upper pressure head | 250mm | 250mm | 250mm |
| 7 | Stroke of piston | 150mm | 150mm | 150mm |
| 8 | Deformation measuring range | 0-10mm | 0-10mm | 0-10mm |
| 9 | Deformation resolution | 0.01mm | 0.01mm | 0.01mm |
| 10 | Loading speed | 0-40kN/s | 0-40kN/s | 0-40kN/s |
| 11 | Dimension of main machine(cm) | 150X140X200 | 150X140X200 | 160X150X205 |
| 12 | Dimension of control cabinet(cm) | 110X70X94mm | 110X70X94mm | 110X70X94mm |
| 13 | voltage | 380V, 50Hz, 1.5kW | 380V, 50Hz, 1.5kW | 380V, 50Hz, 1.5kW |
| 14 | Weight of main machine | 2800kg | 2800kg | 3000kg |
FAQ:
Q. When can I get the price of the cnc spare parts?
A. We usually quote within 24 hours after we got your inquiry. If
you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.
Q. How can I get the accurate price ?
A.There are some basic specs we need to know for price calculate,
that are: Exact drawings, Materials, Surface treatment. Please
suggest us your order quantity too.
Q. Do you accept the OEM?
A. OEM is welcome. We can custom the good according to your design.
Q. What is the shipping ?
A:By express(FedEx, UPS, DHL, TNT, EMS, etc...),By Air,by shipping.
Q. How do I pay for the order?
A.The common payments are T/T(Telegraphic Transfer),western union ,
Q. I have an idea for a new product, but don't know if it can be
manufactured. Can you help?
A. Yes! We are always happy to work with potential customers to
evaluate the technical feasibility of your idea or design and we
can advise on materials, tooling and likely set-up costs.
Q. Can I test some samples before order?
A. Yes, can make samples for you before order, but you should pay
sample charges.
